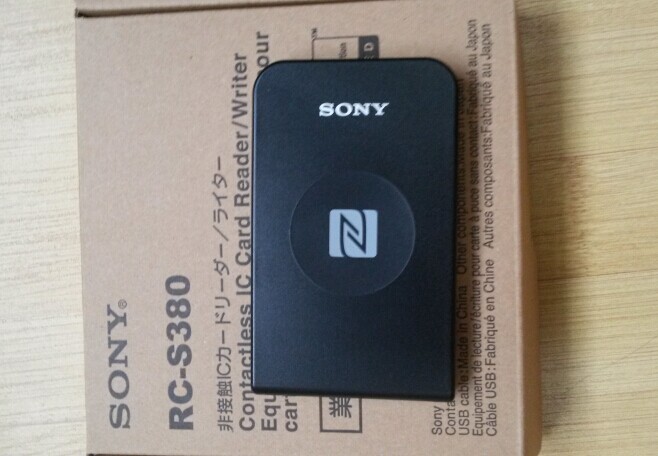

SONY索尼RC-S380/S讀卡器
USB NFC Reader
RC-S380/S
- FeliCa / Type A / Type B
- Compatible with Windows? Embedded
- Conforms to PC/SC 2.0
The RC-S380/S product is capable of communicating both with devices that conform to the NFC Forum specifications and with various contactless IC cards, including FeliCa? and ISO/IEC 14443 Type A / Type B.
This product can be used in Windows? thin client terminals and fat client terminals.
Features
Available for various contactless IC Cards
Read/Write capability with FeliCa card / FeliCa-compatible devices and ISO/IEC 14443 Type A / Type B cards.
Compatible with Windows? Embedded
Compatible with Windows? Embedded Standard 7 SP1, Windows? Embedded POS Ready 7, and Windows? Embedded 8.1 Industry.
Conforms to PC/SC 2.0 specification
PC/SC interface for applications is provided to access FeliCa cards and ISO/IEC 14443 Type A / Type B cards.
Supports major virtualization systems for secure thin client environments
Suitable for terminal login authentication, etc., using IC cards in major virtualization systems to realize secure thin client environments.
For details of environments, refer to the thin client environments.
Compliant with various countries’ / areas’ radio law
RC-S380/S is compliant with radio law in the following countries and areas:
USA / Canada / EU / Korea / Taiwan / Hong Kong / Vietnam / Thailand / Malaysia / Singapore / Philippines / Indonesia /
Saudi Arabia / China (China model only) / Japan.
Application Development Environments
The following Software Development Kit (SDK) lineup supports the development of application software for various operating systems to control the reader:
SDK for NFC Lite for Windows OS
Supports application development for ISO/IEC 14443 Type A / Type B cards, as well as FeliCa cards / FeliCa-compatible devices and Mobile Wallet Phones (Osaifu-Keitai) .
SDK for NFC Starter Kit for Windows OS
This free of charge SDK for browsing and evaluation provides a part of function of SDK for NFC Lite
SDK for NFCfor embedded devices
For other widely-adopted operating systems, such as Linux, reference source code with transplantable C language is provided to develop applications for ISO/IEC 14443 Type A / Type B cards, as well as FeliCa card / FeliCa-compatible devices and Mobile Wallet Phones.
Product Specifications
| RC-S380/S | |
|---|---|
| Regulation requirements |
?Japan ： No.: AC-12005 ?USA ： FCC ID: AK8RCS380 ?Canada ： IC Certification No.: 409B-RCS380 ?Europe ： CE R&TTE(1999/5/EC) For details of other regulation requirements, please contact us. |
| Communication method |
Conforms to ISO/IEC 18092 (212 kbps / 424 kbps Passive communication mode) Conforms to ISO/IEC 14443 (Type A / Type B) |
| Communication distance*1 | Approx. 5 mm (distance from the external surface of the device) |
|
Carrier frequency (per card/device) |
13.56 MHz |
|
Communication speed (per card and device) |
106 kbps*2, 212 kbps, 424 kbps*3 |
| Compatible cards / devices*4 |
?FeliCa Standard ?FeliCa Lite ?FeliCa Lite-S ?FeliCa Link ?NFC Dynamic Tag (FeliCa Plug) ?Mobile FeliCa IC mobile phone ?ISO/IEC 14443 Type A, MIFARE, Type B ?MIFARE Classic ?MIFARE Ultralight / Ultralight C ?MIFARE DESFire / DESFire EV1 ?MIFARE Plus ?SmartMX ?Jewel / Topaz |
| API | PC/SC Ver. 2.0, FeliCa library |
| External interface | USB (full-speed) |
|
Operating temperature*5 / humidity (no condensation or frost) |
5 oC to 35 oC / 10% to 90% |
|
Storage temperature / humidity (no condensation or frost) |
-20 oC to +60 oC / 10% to 80% |
| Mass | Approx. 36 g (excluding USB cable) |
| External dimensions (W x H x D) | Approx. 60 mm x 11 mm x 100 mm |
| Operating voltage, Consumption current | DC 5V Max. 200 mA during operation |
| Supplied accessories | Instruction manual, WEEE mark instructions*6, cardholder, dedicated stand, USB cable (approx. 1 m long) |
