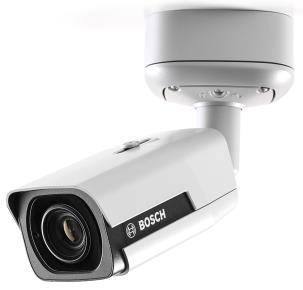

BOSCH NTI-50022-A3S has shut down,use NBE-4502-AL 2.8 12 mm Bullet 2 mp HDR,automatic,IP67 IK10 instead
Using automatic zoom/focus lens, setup wizard and pre-configured model function, more easy to install
Built-in ir illuminator, to view from 60 meters (196 feet) of the object
Can provide 1080 p30 high-resolution image
Used to trigger alert and quick retrieve data associated with the built-in Essential Video Analytics
More fully configurable h. 265 streams
The power supply
The input voltage Ethernet power supply (rated 48 VDC); 12 VDC or 24 VAC plus or minus 10% / + + / - 10%
PoE IEEE standard IEEE 802.3 af (802.3 at type 1) level of power: 3 classes
Power consumption of 950 mA (12 VDC) 750 260 mA mA (24 VAC) (PoE)
The sensor
1/2.8 of an inch CMOS sensor type
Effective image pixel 1937 (vertical) x 1097 (horizontal); About 2.12 MP
Video performance - sensitivity
Sensitivity - (3200 k, the reflectivity of 89%, allows, ire (30)
Color 0.052 lux
Black and white 0.008 lux
Infrared lamp 0.0 lx
Dynamic range according to IEC 62676 part 5 measured 85 dB wide dynamic range (WDR)
The video stream
H. 265 video compression; H. 264; M-JPEG
